72V Rawrr Mantis X

$3,600.00$2,999.00
US Pro Scooters

Affirm Pay: Pay in 4 installment Plan

US Pro Scooters

Shop Pay: Trusted Shopify Payments

PRODUCT INFORMATION
Features
Dimensions
PRODUCT INFORMATION

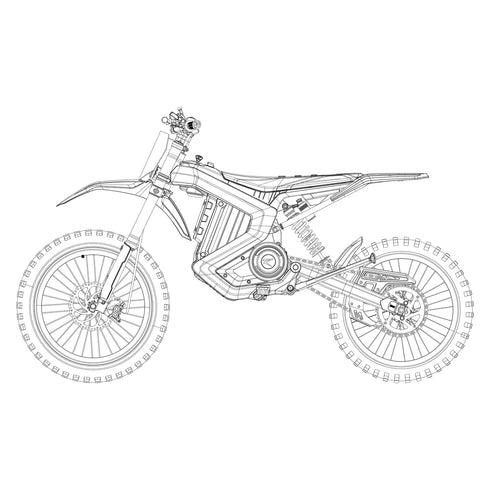

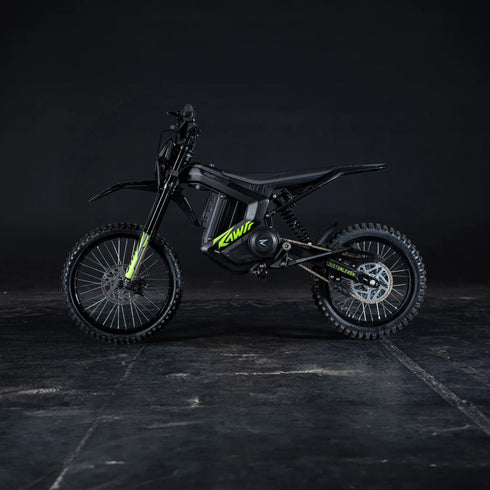

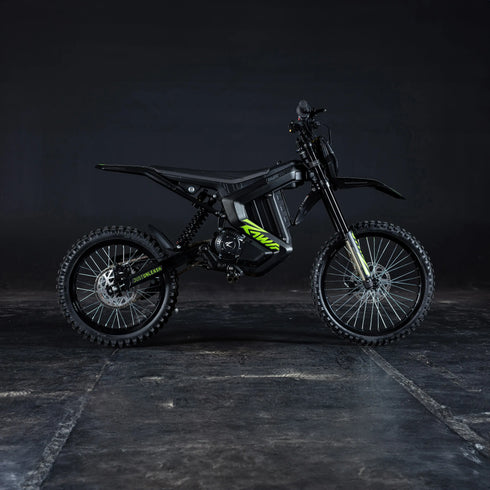

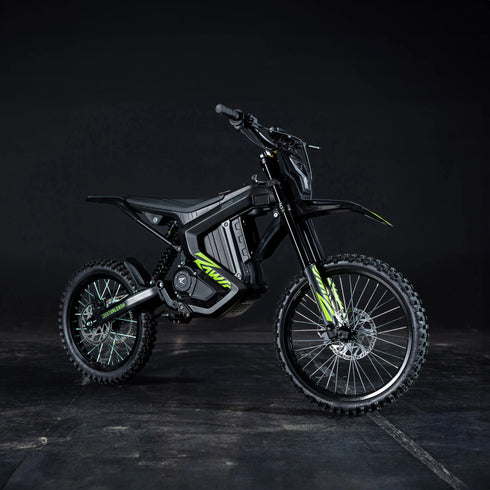

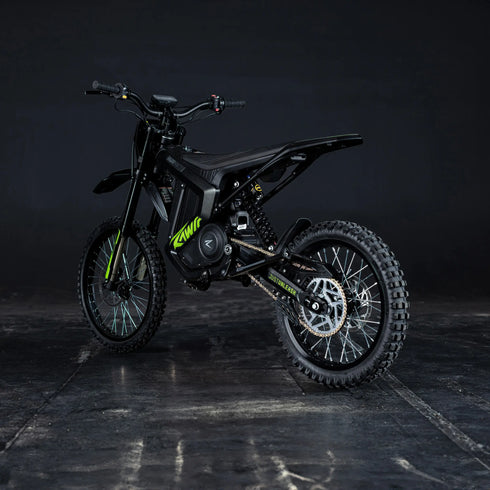

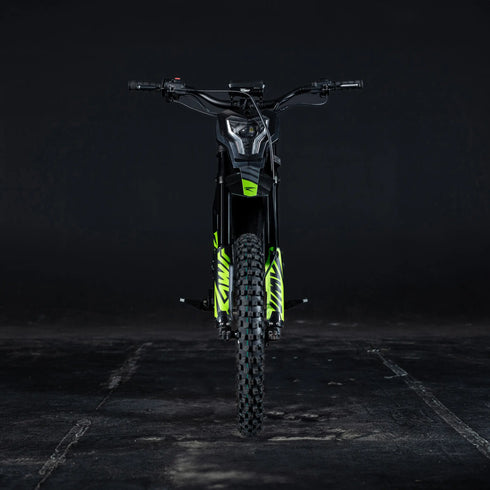

Our new medium-sized bike, the Mantis X, has a 32-inch seat hight, weighs 139 lbs with battery, and is designed to compete head-on with similar bikes in the eMoto category. It has a 19-inch front wheel, 17-inch rear wheel, great front-to-back balance, an LCG for quick transitions, and a solid top speed of 50MPH.

Washing Instructions

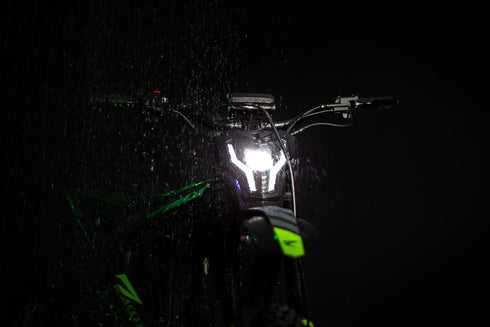

While the Mantis X is water resistant, we do not recommend spraying water in certain areas. Specifically avoid spraying water at the controls on the handlebar and at the area around the charging port.

Where to Avoid:
Avoid spraying water at the dash, throttle, handlebar controls and charging port areas. Instead, use a damp cloth to clean off these areas.

Where you can spray water:
You can spray water at or below the fender in the front, the frame below the seat, swing arm, rear wheel, rear suspension, and rear fender.

Technical Specifications

Performance


Top Speed
50MPH

Acceleration
0-19mph: 2s | 0-31MPH: 4s | 0-50MPH: 12.8s

Range
62 Miles eco mode; 34 miles 40mph

Max Torque
191.77 ftlb

Max Motor Power
6500W
Regular Motor Power
3000W

Climbing Ability
45 Degrees

Safety


Motor and Controller IP
IP66
Battery and Wire Connectors IP
IP55

App Controlled Tuning
YES
Top Speed Limiter
Yes

Kill Switch
Yes

Chain Cover
Yes

Kickstand Sensor
yes

Brake Sensors
Yes

Electrical


Display Type
LCD

Battery Type
Lithium Ion
Battery Cap
72V 2160WH

Battery Cycle Life
800 Cycles

Charger input voltage
AC110/220V
Charging Time
3-6 hours

Controller Type
FOC Sine Wave
Drive Modes
eco / sport / race

Mechanical


Brake Type
4-Piston Hydraulic Disc Brakes

Front Fork Travel Distance
8.27 In

Rear Suspension Travel
2.76 IN
Rear Wheel Travel
7.087 IN

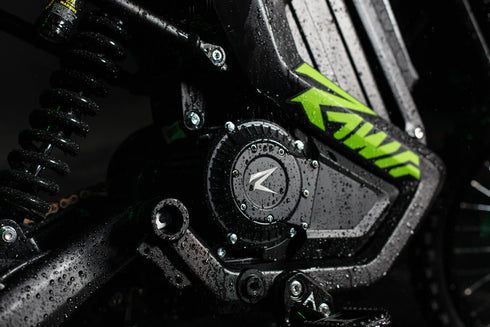

Motor Type
Brushless
Motor Cooling Method
Air-Cooled

Power Delivery
Gearbox and Chain Driven

Motor Max Operating Temperature
85 degrees Celsius

Frame
6061 Aluminum Alloy

Measurements


Length
74 IN
Height
43.7 IN

Width
31.3 IN
Max clearance
13.2 IN

Wheelbase
49.8 IN
Seat Height
32 IN

Front Tire SIze
70/100-19
Rear Tire Size
90/100-17

Front Brake Rotor Size
220 mm
Rear brake rotor size
203 mm

Vehicle Weight with Battery
139 lbs
Max Payload
220 lbs
